KrAZ-5133

SovAvto Website.



Model  KrAZ-5133* (*)
Seating 3
Net-mass, kg [lb] TOTAL 8,075 [17,765]
front axle 4,825 [10,615]
trolley 3,250 [7,150]
Full load mass, kg [lb] TOTAL 17,800 [39,160]
front axle 6,500 [14,300]
rear trolley 11,300 [24,860]
Load mass, kg [lb] 9,500 [20,900]
Total trailer mass, kg [lb] 18,000 [39,600]
Length, mm [in.] -
Width, mm [in.] -
Height, mm [in.] -
Base, mm [in.] -
Minimal clearance, mm [in.] -
Minimal radius of turn, m [yards] 13 [14.3]
Maximum ascent (grade) when loaded, degrees 20
Maximum speed, km/h [mi/h] 100 [62]
Maximum horsepower, hp [kW] 330 [243] @ 2,100 rpm
Maximum torque, Nm [lbft] 125 [811] @ 1,200-1,400 rpm
Engine displacement, liters [cc] 14.86 [14,860]
Compression ratio -
Gear ratios 7.30/ 4.86/ 3.50/ 2.48/ 2.09/ 1.39/ 1.00/ 0.71/ R-10.46
Main gear ratio 5.649
Transfer box ratio
System voltage, v 24
Suspension front dependent, 2 half-elliptical springs, work together w/ 2 hydraulic shock absorbers
rear dependent, balanced on 2 half-elliptical springs
Steering mechanism mechanical w/ hydraulic facilitator
Brakes working drum type wheel braking w/ internal shoe
parking wheel brake mechanism used, pneumatic drive w/ energy accumulators
auxiliary throttle type, pneumatic drive, installed in exhaust system
Wheels number of 6 + 1
tires 11.00R20(300R-508); 12.00R20(320R-508)
rim size 216B-508(8,5B-20)
Mileage, liters/100km [mi/gal] 26 [9.0]
Acceleration 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 350 [93]
Years of production 19??-present
Type of engine YaMZ-238D, diesel w/ turbo, V8
Bore/Stroke, mm [in.] 130 [5.12] / 140 [5.51]
Wheel formula 4 X 2

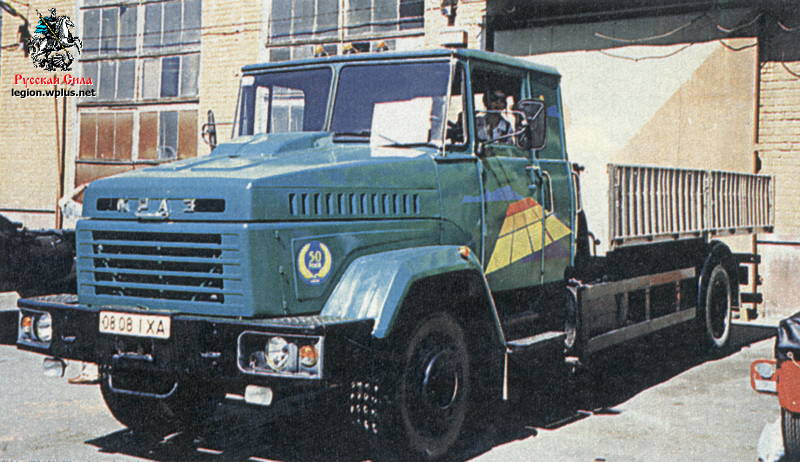

Pictures 73 KB (color, front view [KrAZ-5133] [4/19])

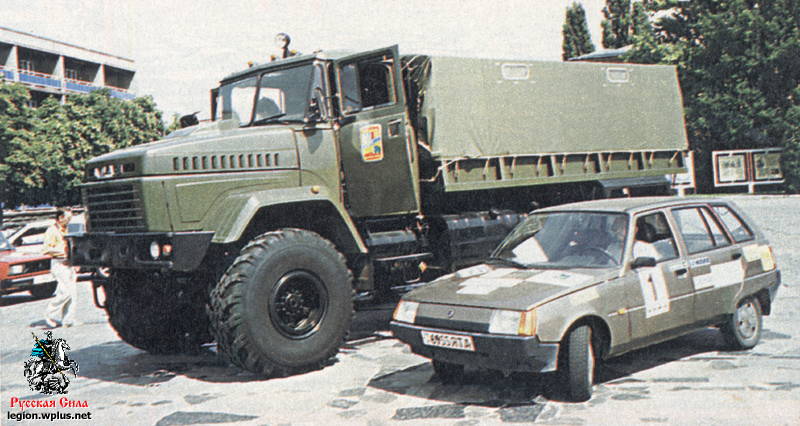

67 KB (color, side view [KrAZ-5131] [4/19])
