KrAZ-214, KrAZ-219, KrAZ-221, KrAZ-222

SovAvto Website.

Model  KrAZ-214 KrAZ-219 KrAZ-221 KrAZ-222
Seating 3
Net-weight, kg [lb] 12,300 [27,060] 11,300 [24,860] 10,100 [22,220] 12,200 [26,840]
Full load weight, kg [lb] 19,570 [43,054] 23,530 [51,766] - 22,350 [49,170]
Load weight, kg [lb] 7,000 [15,400] 12,000 [26,400] (10,000 [22,000] if unpaved) - 10,000 [22,000]
Total trailer weight, kg [lb] 50,000 [110,000] (10,000 [22,000] if unpaved) 15,000 [33,000] 30,000 [66,000] (15,000 [33,000] if unpaved) -
Length, mm [in.] 8530 [336] 9660 [380] 7375 [290] 8190 [322]
Width, mm [in.] 2700 [106] 2650 [104] 2638 [104] 2650 [104]
Height, mm [in.] 2880 [113] 2620 [103] 2620 [103] 2760 [109]
Base, mm [in.] 5300 [209] 5750 [226] 4780 [188] 4780 [188]
Track width (front/rear), mm [in.] 2030 [80] 1950 [77]/ 1920 [76]
Approach/departure angles, degrees 48/32 42/18 36/55 42/52
Minimal clearance, mm [in.] 360 [14.2] 290 [11.4]
Minimal radius of turn, m [yards] 14 [15.4] 13.2 [14.5] 11.2 [12.3] 11.2 [12.3]
Maximum speed, km/h [mi/h] 55 [34] 55 [34] 45 [28] 47 [29]
Maximum horsepower, hp [kW] 205 [153] @ 2,000 rpm 180 [134] @ 2,000 rpm
Maximum torque, Nm [lbft] 78 [506] @ 1,200-1,400 rpm 72 [467] @ 1,200-1,400 rpm
Engine displacement, liters [cc] 6.97 [6,970]
Compression ratio 17.0:1
Gear ratios 6.17/3.40/1.79/1.00/0.78/R-6.69
Main gear ratio 8.21 (KrAZ-214 has 7.63 for front axle)
Mileage, liters/100km [mi/gal] 70 [3.4] 60 [3.9] 85 [2.8] 65 [3.6]
Acceleration time from 0-100 km/h [62 mi/h], seconds - - - -
Breaking distance, m [yards] (30-0 km/h [19-0 mph]) 20 [22] (from 40-0 km/h [25-0 mph]) 12 [26.4] 20 [22]
Fuel tank capacity, liters [gal] 2 X 225 [2 X 60] 225 [60]
Years of production 1959-?
Type of engine YaAZ-M206B (forcified version of YaAZ-M206A), 2-tact, ohv, diesel, 6 cyl. YaAZ-M206A, 2-tact, ohv, 6 cyl. diesel with direct injection
Bore/Stroke, mm [in.] 108 [4.25]/ 127 [5.00]
Wheel formula 6 X 6 6 X 4

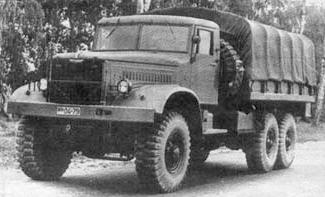

Pictures 15 KB (b/w, front view [7])

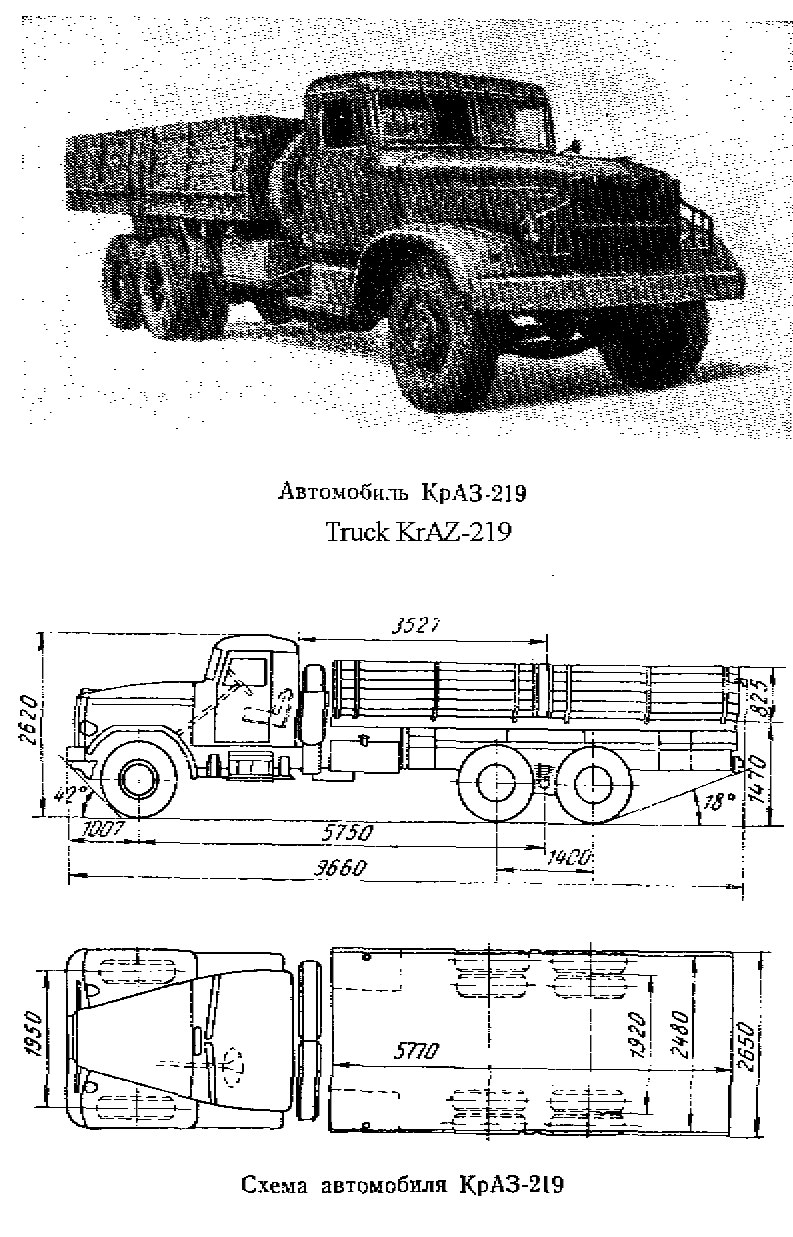

46 KB (b/w, side view /w technical info [1])

11 KB (color, view, pontoon bridge [99])

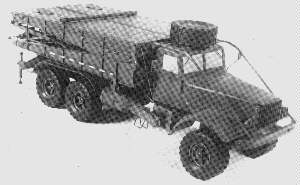

9 KB (b/w, side view, model pontoon bridge [100])

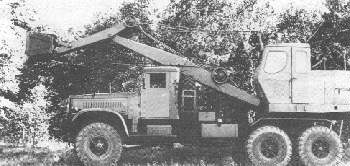

16 KB (b/w, side view, crane shovel [100])

3 KB (color, side view, lowering a TMM [heavy mechanized bridge] [108])

4 KB (b/w, front view [108])

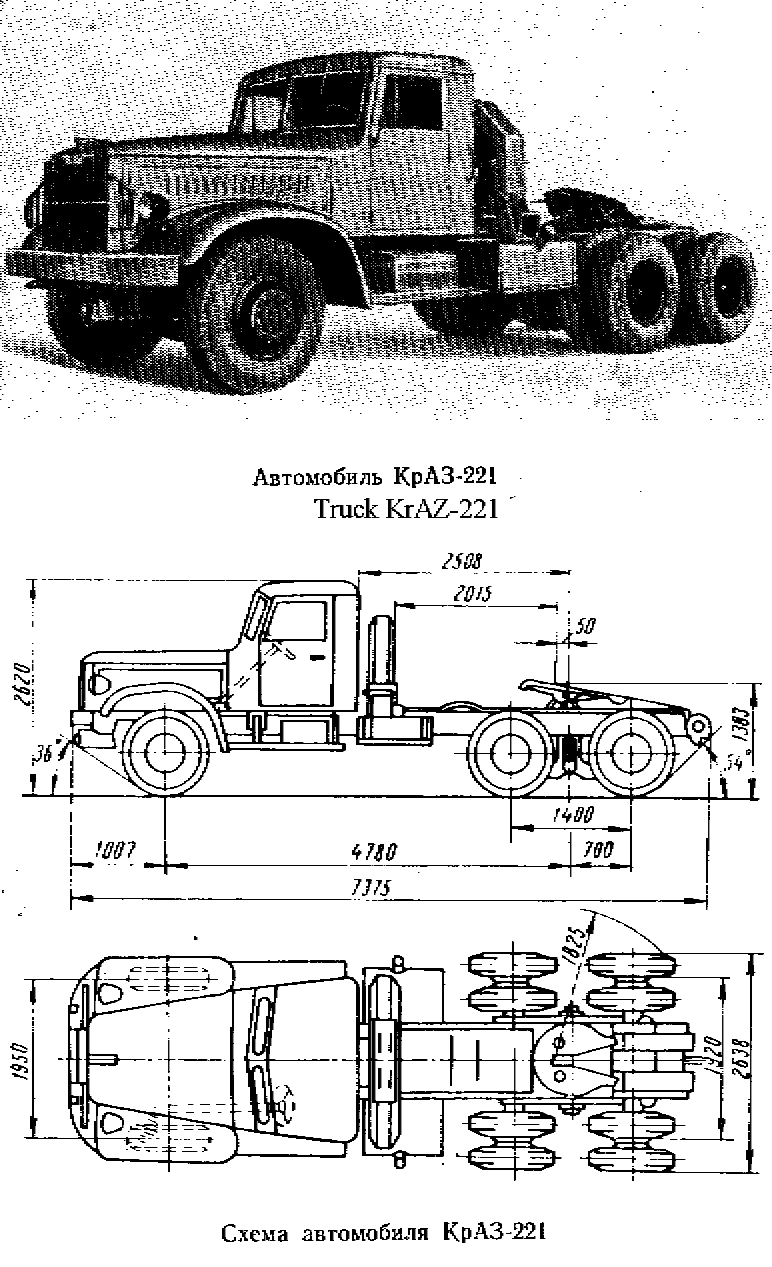

43 KB (b/w, front view /w technical info [1])

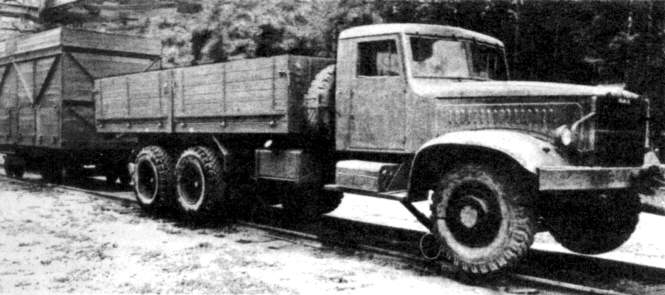

35 KB (b/w, side view, rail based [7])

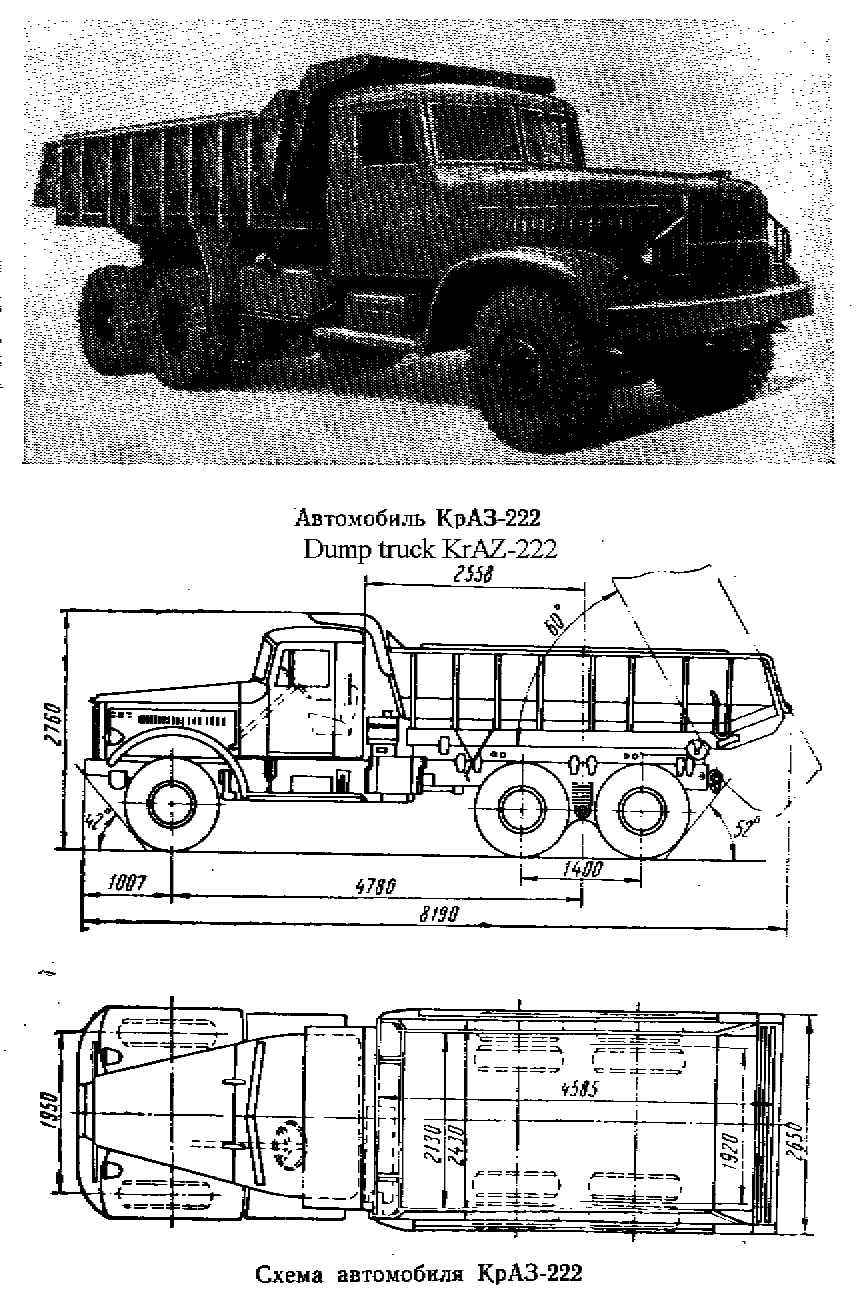

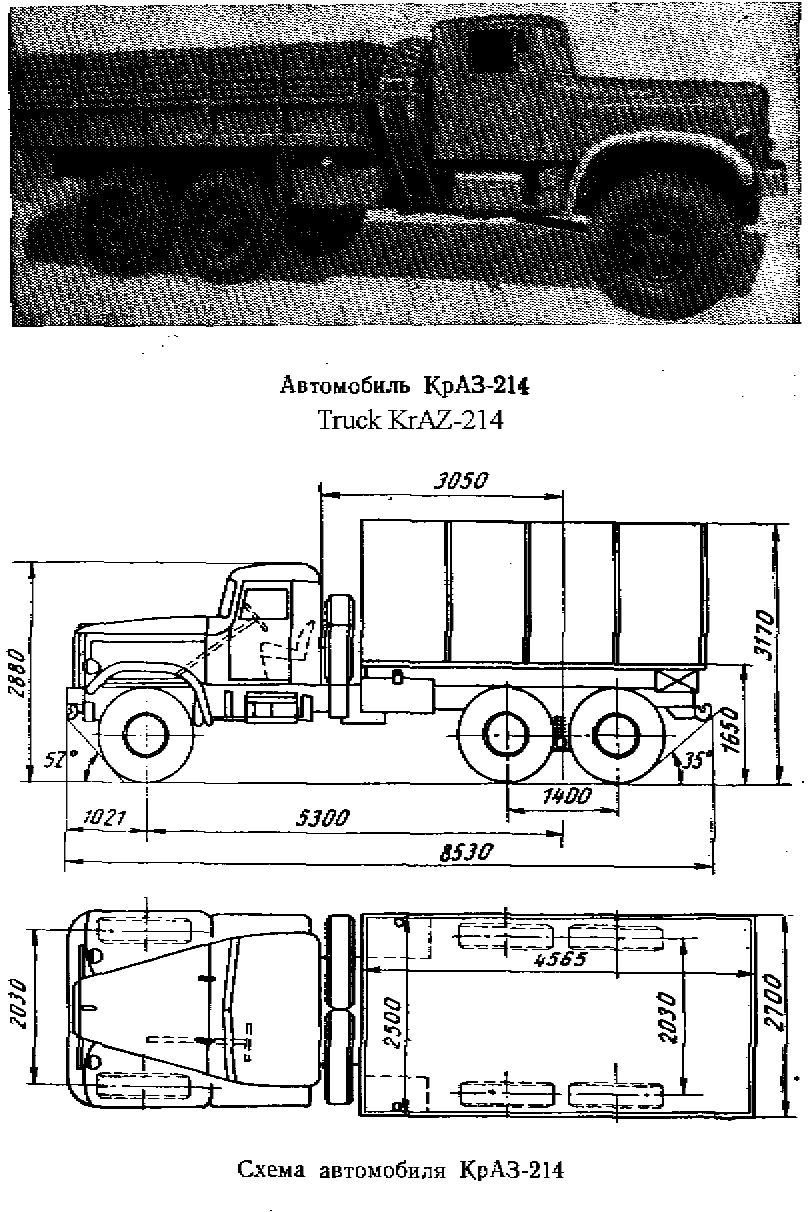

43 KB (b/w, side view /w technical info [1]) 53 KB (b/w, side view /w technical info [1])

This is the first model that KrAZ made when it opened in 1958. KrAZ-219 is the basic board platform model, KrAZ-214 is different mechanically only in that it has a forcified engine and transmission to the front axle, otherwise it is a all wheel drive version of KrAZ-219. KrAZ-221 is a semi-trailer truck and KrAZ-222 is a dump truck.

This family of diesel trucks succeeded KrAZ-210 series.
