Info on KAZ-605
| Model | KAZ-606 "Kolhida" |
| Seating | 2 |
| Net-weight, kg [lb] | 3,868 [8,510] |
| Full load weight, kg [lb] | - |
| Load weight, kg [lb] | - |
| Total trailer weight, kg [lb] | 9,500 [20,900] |
| Length, mm [in.] | 4780 [188] |
| Width, mm [in.] | 2310 [91] |
| Height, mm [in.] | 2385 [94] |
| Base, mm [in.] | 2800 [110] |
| Minimal clearance, mm [in.] | 265 [10.4] |
| Minimal radius of turn, m [yards] | 6.4 [7.0] |
| Maximum speed, km/h [mi/h] | 60 [37] |
| Maximum horsepower, hp [kW] | 108 [80] @ 2,800 rpm |
| Maximum torque, N·m [lb·ft] | 34 [221] @ 1,200 rpm |
| Engine displacement, liters [cc] | 5.55 [5,555] |
| Compression ratio | 6.5:1 |
| Gear ratios | 6.24/3.32/1.90/1.00/0.81/R-6.70 |
| Main gear ratio | 9.28 |
| Mileage, liters/100km [mi/gal] | - |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | 2 X 105 [2 X 28] (A-66) |
| Years of production | 1961-? |
| Type of engine | KAZ-120, carb., 6 cyl., 4-tact |
| Bore/Stroke, mm [in.] | 101.6 [4.00]/ 114.3 [4.50] |
| Wheel formula | 4 X 2 |

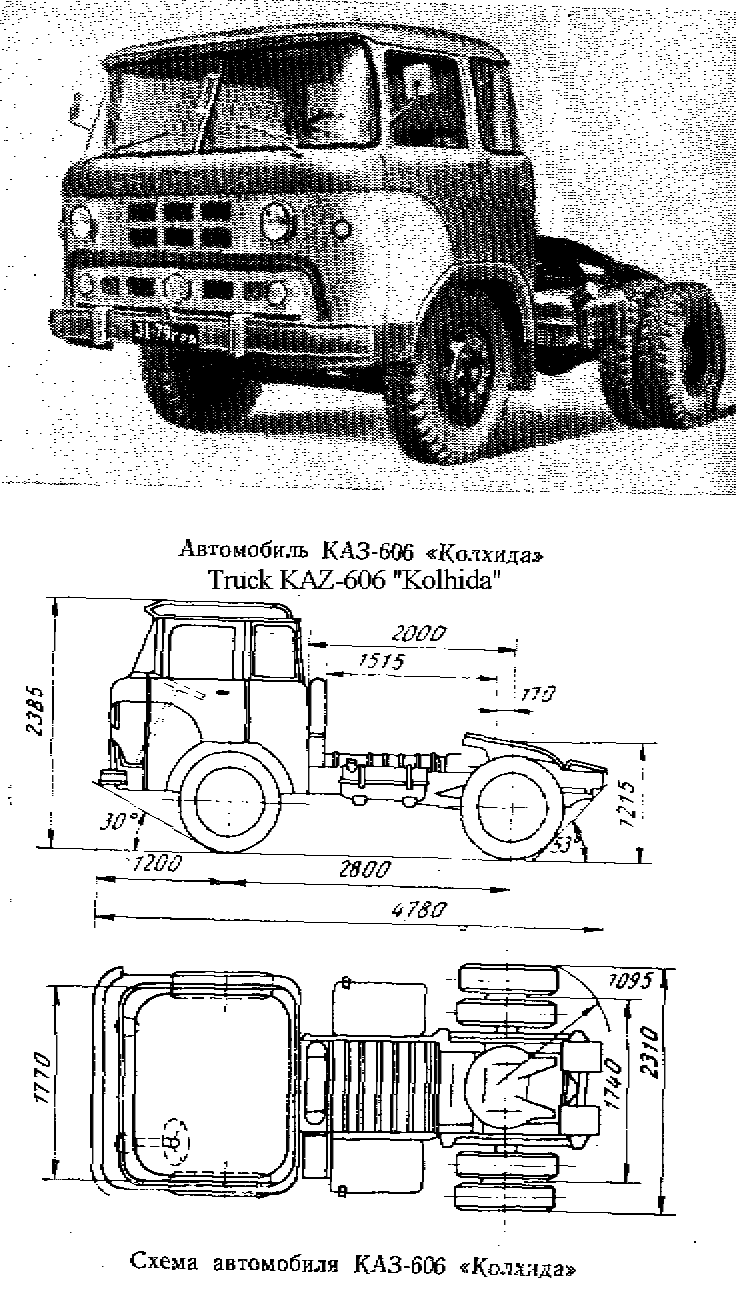

| Pictures | 48 KB (b/w, front view w/

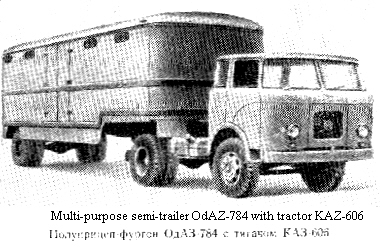

technical info [1]) 23 KB (b/w, front view of 2 trucks [28]) 70 KB (b/w, front view, KAZ-606 w/ OdAZ-784 semi-trailer [1]) |
This was perhaps the most abundantly produced KAZ, however it was still fairly rare that you happened to see it on the streets. The 5-step manual transmission's shift lever was located on the steering wheel column.
