KAZ-600V

SovAvto Website.



Info on KAZ-601; Info on KAZ-120T



Model  KAZ-600V
Seating 3
Net-weight, kg [lb] 4,525 [9,955]
Full load weight, kg [lb] 8,250 [18,150]
Load weight, kg [lb] 3,500 [7,700] (3,000 [6,600] if unpaved)
Total trailer weight, kg [lb] -
Length, mm [in.] 5830 [230]
Width, mm [in.] 2290 [90]
Height, mm [in.] 2180 [86]
Base, mm [in.] 4000 [157]
Minimal clearance, mm [in.] -
Minimal radius of turn, m [yards] 8.5 [9.4]
Maximum speed, km/h [mi/h] 65 [40]
Maximum horsepower, hp [kW] 93 [69] @ 2,600 rpm
Maximum torque, N·m [lb·ft] 31 [201] @ 1,200-1,300 rpm
Engine displacement, liters [cc] 5.55 [5,555]
Compression ratio 6.0:1
Gear ratios 6.24/3.32/1.90/1.00/0.81/R-6.70
Main gear ratio 7.63
Mileage, liters/100km [mi/gal] 29 [8.1] @ 30-40 km/h [19-25 mi/h]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 150 [40] (A-66)
Years of production 1956-?
Type of engine ZIL-120, carb., 4-tact, 6 cyl.
Bore/Stroke, mm [in.] 101.6 [4.00]/ 114.3 [4.50]
Wheel formula 4 X 2

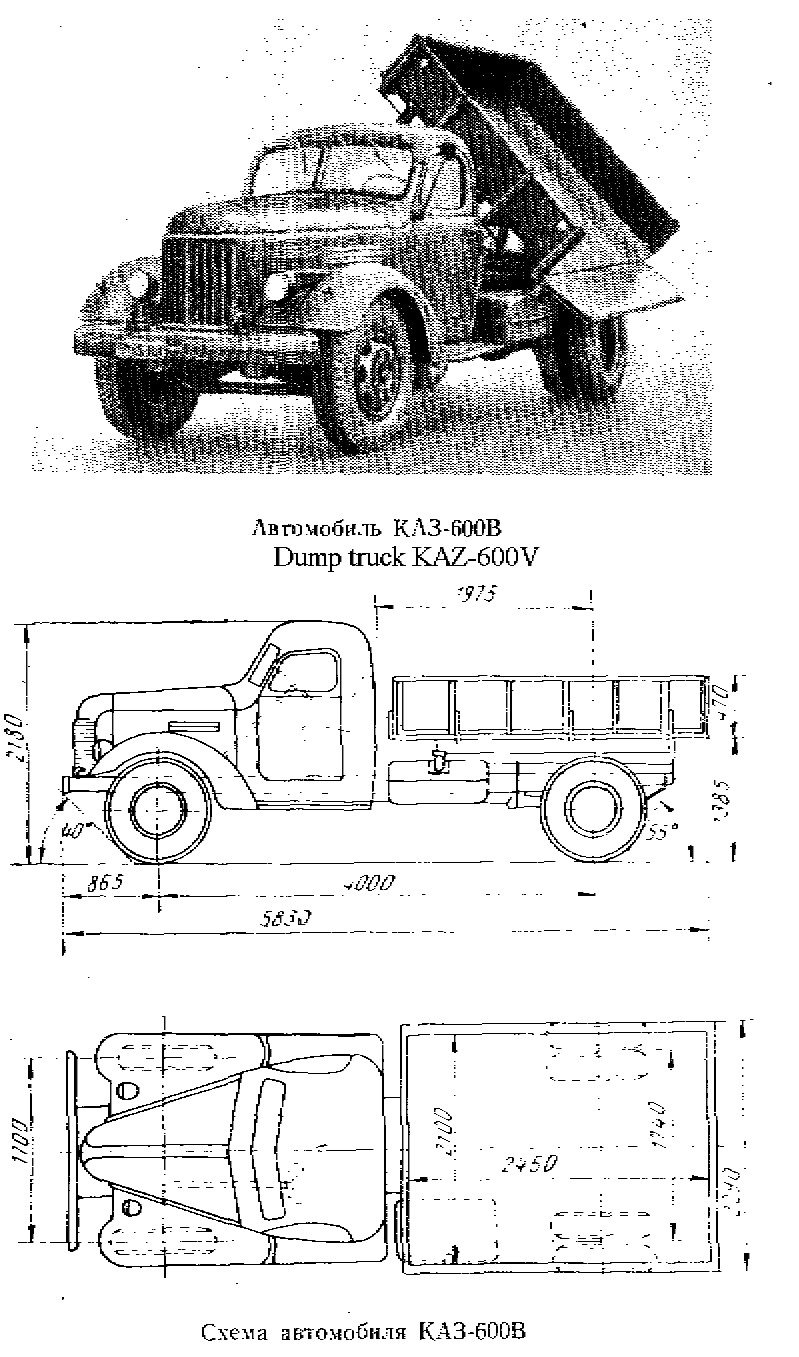

Pictures 41 KB (b/w, front view w/ technical info KAZ-600V [1])

88 KB (color, front view, drawing KAZ-600AV [106])

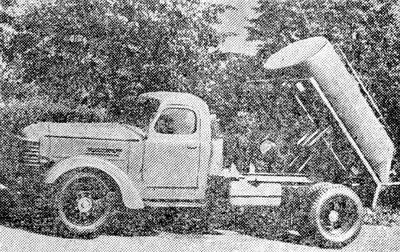

67 KB (b/w, side view, KAZ-601 cistern [16])

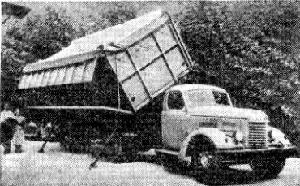

21 KB (b/w, front view, KAZ-120T trailer [16])

This is one of the first models made in Kutaisi and it was made in small quantity. This tipper had a body of volume 2.4 m3 and a side unload mechanism that allowed the cargo to be dumped either to the left or to the right, rather then the traditional unload in the rear.
