KamAZ-53229

SovAvto Website.

Info on KamAZ-4310 * Info on KamAZ-4311 * Info on KamAZ-5350

Model	KamAZ-53229**
Seating	3
Net-weight, kg	-
Full load weight, kg	-
Load weight, kg	-
Total trailer weight, kg	-
Length, mm	7605
Width, mm	-
Height, mm	2870
Base, mm	3690 (3340 in KamAZ-53228) from front to center of rear 2 axles/ 1320 in rear
Minimal clearance, mm	-
Minimal radius of turn, m	-
Maximum speed, km/h	-
Maximum horsepower, hp	210
Engine capacity, liters	-
Gear ratios	-
Main gear ratio	-
Mileage, liters/100km	-
Breaking distance, m	-
Fuel tank capacity, liters	-
Years of production	1980's-present
Type of engine	KamAZ-7403.10, V8.
Wheel formula	6 X 4 (6 X 6 in KamAZ-53228)
Pictures	11 KB (color, used to transport metal scrap. [see below for details]* [87]) 11 KB (color, transports gasoline [87]) 4 KB (b/w, with dimensions, ATZ-17 and AC-17 [87]) 4 KB (b/w, with dimensions, ATZ-13 and AC-13 [87]) 45 KB (color, cistern of Grabovsky Plant [KamAZ-53229] volume 17m3 [19/13])

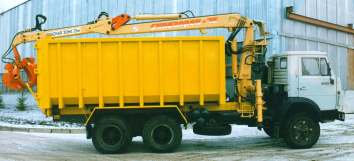

*This truck is intended for transporting metal and servicing the loading/unloading functions by itself. It is supplied with "Sinegorec-75" (5 KB [87]) mechanical arm. "Sinegorec-75" can exert power of up to 75 kNm and the maximal length of the extended shaft is 7.8 m (8.5 yds). It can turn 380 degrees horizontally and up to 85 degrees and it has a mass of 1950 kg (2050 lbs). Its load weight is 12,000 (25,000 lbs) and full mass is 24,000 (50,000 lbs). Its dimensions are 9.3 X 2.5 X 4. The body has a volume of 18 m3 and inside dimensions of 4.72 X 2.31 X 1.7 meters.

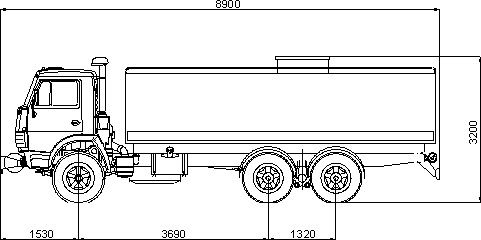

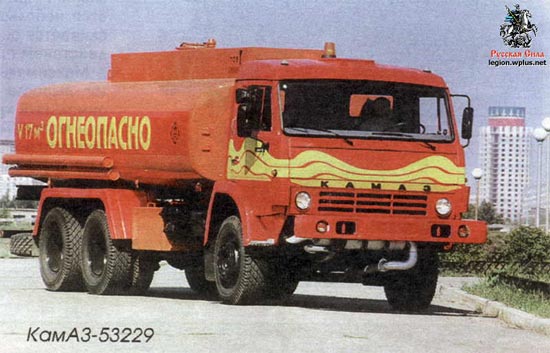

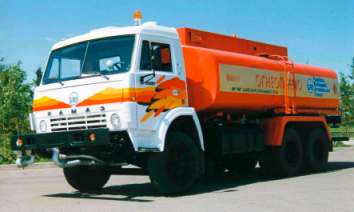

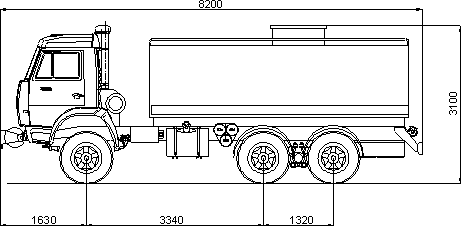

The gasoline transporting version has a single cistern which has a volume of 13,000L (4,000 gal). It takes 50 minutes for it to empty itself, with a pump this time is decreased to 38 minutes. It has a full load mass of 24,000 kg (50,000lbs). The pump is indexed as SCL-00A and can pump at 360L/minute with power of 6.5 kWatts. There are two modifications of this fuel carrier, one is KamAZ-53229 (6 X 4) indexed as ATZ-17 and AC-17 [length is 8900mm, height is 3200mm]; and the other one is KamAZ-53228 (6 X 6) indexed as ATZ-13 and AC-13 [length is 8200mm, height is 3100mm].

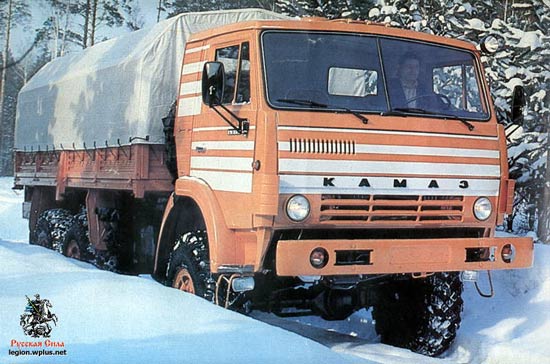

KamAZ-43105, civilian modification (53 KB color, front view in winter forest [19/89])

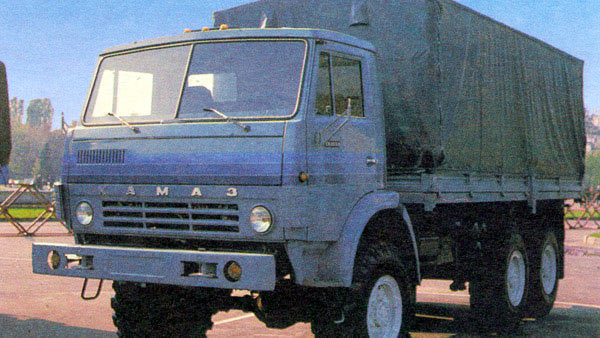

KamAZ-43105 (63 KB color, front view, platform w/ tent [3])

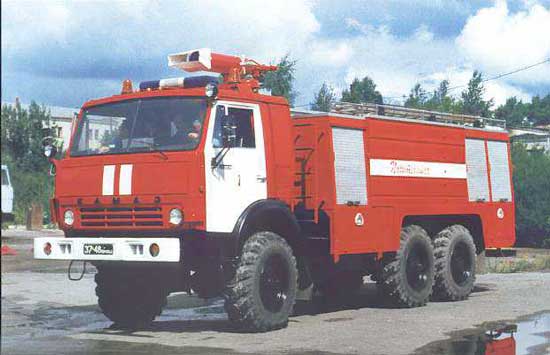

KamAZ-43101 (27 KB color, front view, airdrome fire-truck AA-53-40 [126/19])

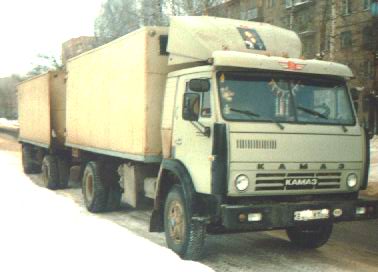

KamAZ-43101 (?) (18 KB color, front view, 4 x 2, w/ trailer [160])

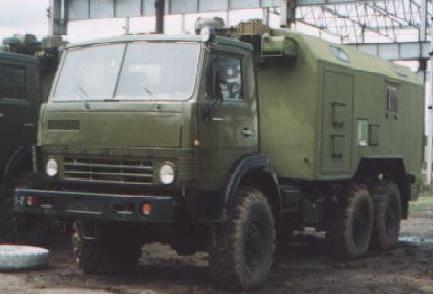

KamAZ-4310 (18 KB color, front view, 6 x 6, military van truck ("Kung"), [1988] [155])

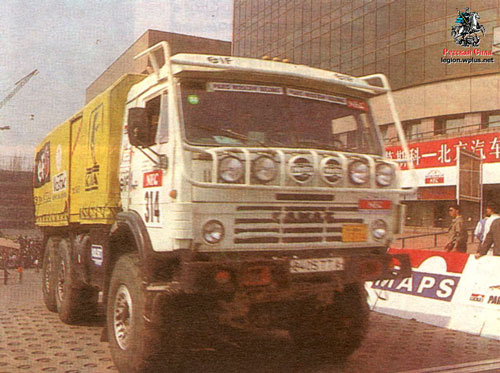

KamAZ-431010, sport vehicle (58 KB color, front view, racing truck [19/4])

KamAZ-43??, crane (19 KB color, front view [101])

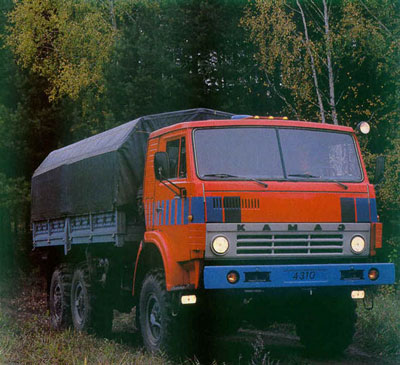

KamAZ-43101, platform w/ tent (49 KB color, front view [59])

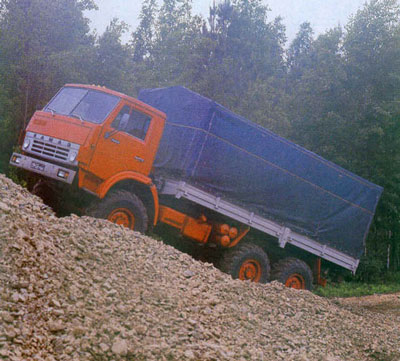

KamAZ-43106, platform w/ tent (50 KB color, side view [59])

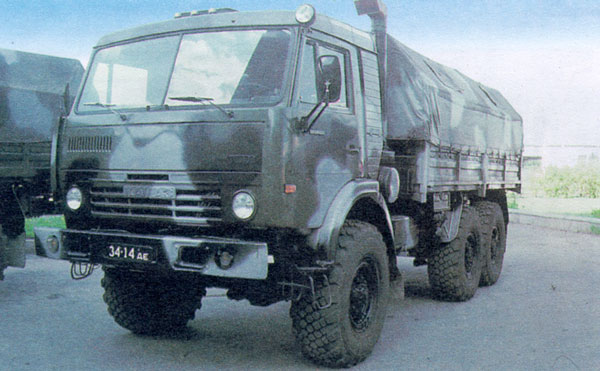

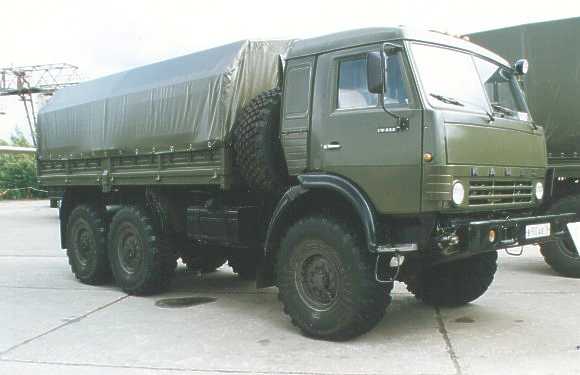

KamAZ-43114, military vehicle (58 KB color, front view, platform w/ tent [3])

KamAZ-43114, military vehicle (19 KB color, side view, platform w/ tent [127/19])

KamAZ-43114, military vehicle (7 KB b/w, diagram [128/19])

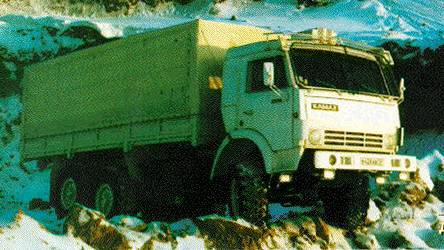

KamAZ-43118 (28 KB color, side view, platform w/ tent [129/19])

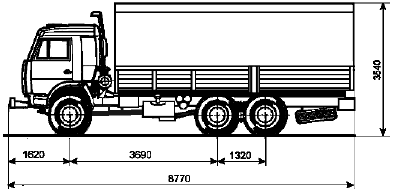

KamAZ-43118 (7 KB b/w, diagram [128/19])

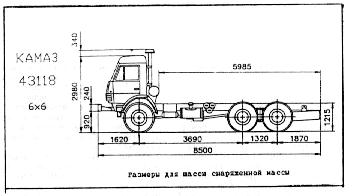

KamAZ-43118 (13 KB b/w, diagram of chassis [129/19])

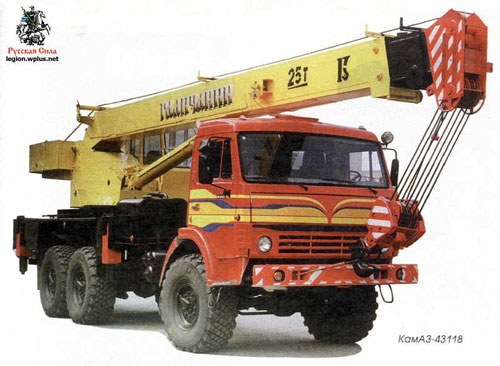

KamAZ-43118, crane "Galichanin" lifts up to 25,000 kg (58 KB color, front view, crane [19/13])

I believe that the 3 trucks listed above [6 X 6] are based on KamAZ-53228.

(11 KB color, front view, going through water [101])

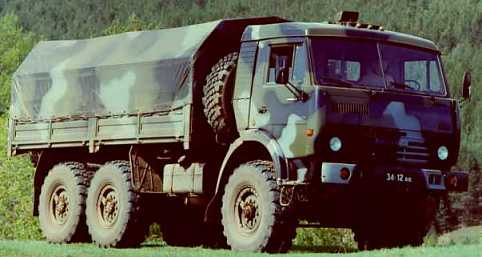

KamAZ-5350, military vehicle (14 KB color, side view, 6 X 6 [101])

KamAZ-5350, military vehicle (19 KB color, side view, 6 X 6 [130/19])

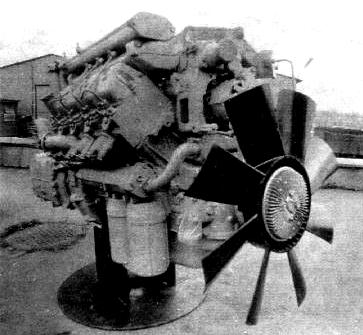

7406.10 engine used on KamAZ-5350 (25 KB b/w, engine [129/19])

** The numbers are based on the timber truck, rather then the fuel trucks.

On any 3 axle KamAZ, a special cabin (8 KB color, side view, big cabin [87]) can be installed. The cabin is complete with a small kittchen (8 KB b/w, interior view [87]), sofa, TV, 60L of cold water and 40L of warm water.

Page created on Wednesday, September 23, 1998. Page last updated on Tuesday, June 04, 2002 08:09:59 PM EST.
