GAZ-52

SovAvto Website.



Model  GAZ-52-03
Seating 2
Curb weight, kg TOTAL 2,815
front axle -
rear axle -
Gross weight, kg TOTAL -
front axle -
rear axle -
Payload [carrying capacity] weight, kg 2,500
Permissible [semi-]trailer weight, kg -
Length, mm 6395
Width, mm 2380
Height, mm 2190
Wheelbase, mm 3700
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle 245
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 70
Fuel consumption, liters/100km 22
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 4 gears
gearbox ratios -
main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size 7,50-20
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear -
gear ratio -
Brakes braking distance, m -
service (foot) -
parking (hand) -
Filling capacities, liters fuel tank 90 (A-72)
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type GAZ-52-01, 6 cylinders, carb., 4-tact
cylinder work order -
maximum horsepower, hp  (with regulator) 75 @ 2,900 rpm
maximum torque, Nm -
displacement, liters 3.485
compression ratio -
bore/stroke, mm 82 / 110
Years of production 1966-1978
Overall units made ?
Wheel arrangement 4 X 2

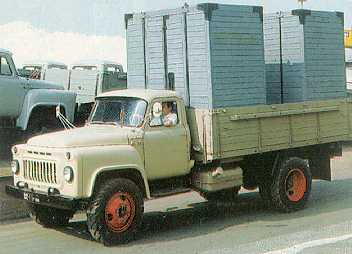

Pictures 38 KB (color, side view [72])

14 KB (color, front view [4])

24 KB (color, side view [41])

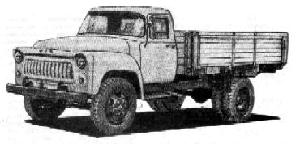

10 KB (b/w, side view, drawing [104])



Model years of prod. important differences engine pictures
GAZ-52 ? load 2,500 kg, platform [similar to GAZ-M-11-73], 6 cyl., 3.48L -
GAZ-52-04 ?-1997 load 2,500 kg, platform GAZ-52-04, 6 cyl., 3.48L -
GAZ-52-03 1966-1978 load 2,500 kg, platform GAZ-52-01, 6 cyl., 3.48L see main chart

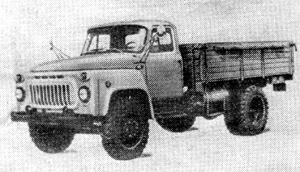

GAZ-52-07 ? load 2,500 kg, platform gaseous, 6 cyl., 3.48L, compression 6.3 26 KB (b/w, side view [16])

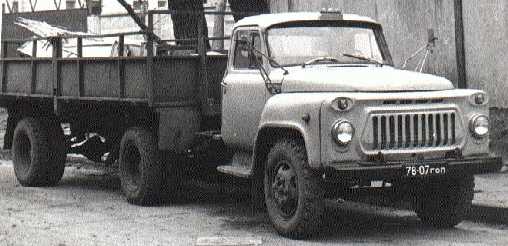

GAZ-52?? ? tractor-trailer GAZ-52-01 22 KB (b/w, front view [28/7])
SAZ-3504 1975-1982 load 2,250 kg, construction dump-truck chassis of GAZ-52-04 -
SAZ-3503 1975-1982 load 2,250 kg, farmers' dump-truck chassis of GAZ-52-04 -

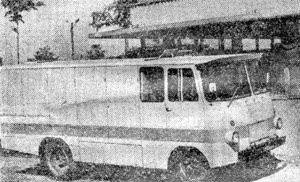

TA-943A 1976-19?? load 2,000 kg, iso-thermal bread truck chassis of GAZ-52-04 31 KB (b/w, side view [16])

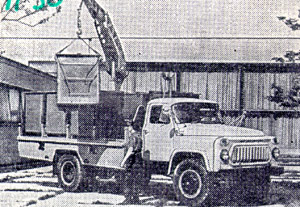

maybe GAZ-52-M30 ? garbage truck - 47 KB (b/w, side view [16])

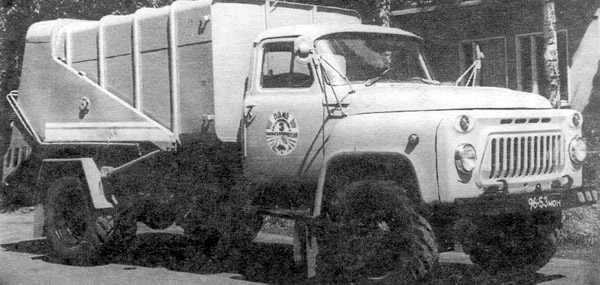

GAZ-52-01 ? garbage truck - 64 KB (b/w, side view [3])

SAZ is the plant that made some dump-truck GAZes. I am not sure whether the whole assembly line was put together there in Saransk or if only the dump mechanisms made.
