GAZ-3105 "Volga"

SovAvto Website.



Model  GAZ-3105 "Volga"
Seating 5
Curb weight, kg TOTAL 1450
front axle -
rear axle -
Gross weight, kg TOTAL 1800
front axle -
rear axle -
Payload [carrying capacity] weight, kg -
Permissible [semi-]trailer weight, kg -
Length, mm 5050
Width, mm 1800
Height, mm 1450
Wheelbase, mm 2870
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle 160
Minimal radius of turn, m b/n curbs (outer front wheel) 5.8
b/n walls (extreme exterior dimension -
Maximum speed, km/h 200
Fuel consumption, liters/100km 8.7 (@ 90), 11.2 (@ 120), 17.5 (city cycle)
Acceleration time from 0-100 km/h, seconds 12
Transmission gearbox -
gearbox ratios -
main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size -
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear -
gear ratio -
Brakes braking distance, m -
service (foot) -
parking (hand) -
Filling capacities, liters fuel tank 78 (Ai-93)
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type ZMZ, V8, fuel injector
cylinder work order -
maximum horsepower, hp 170 @ 5,400 rpm
maximum torque, N·m -
displacement, liters 3.38
compression ratio -
bore/stroke, mm -
Years of production 1998 (experimental)
Overall units made ?
Wheel arrangement 4 X 4

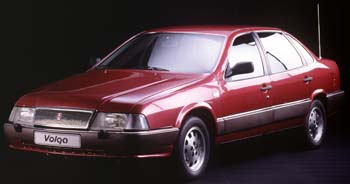

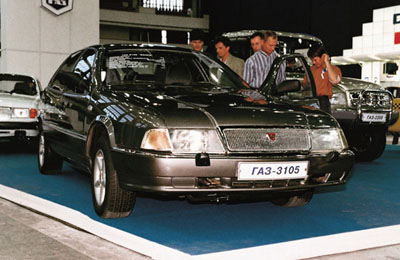

Pictures  10 KB (color, front view [12])

42 KB (color, another front view [4])



Below are some modifications of GAZ-3105.

Model Characteristics Photo

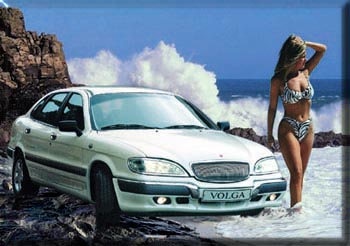

GAZ-3103 "Volga" -

 (45 KB color, front view [11]), (29 KB color, front view [111])

GAZ-3104 "Volga"

- (48 KB color, front view [11])

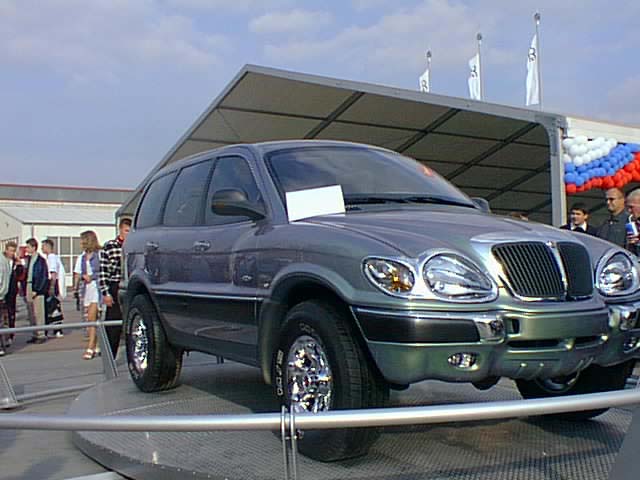

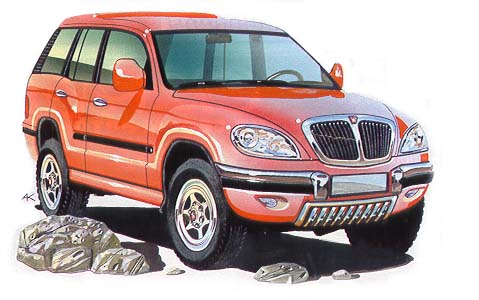

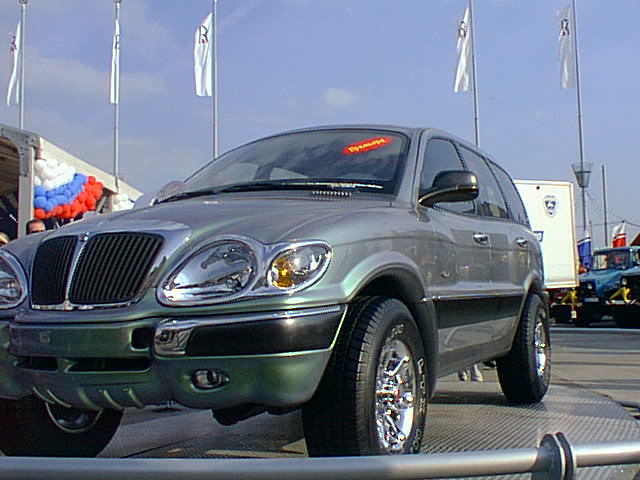

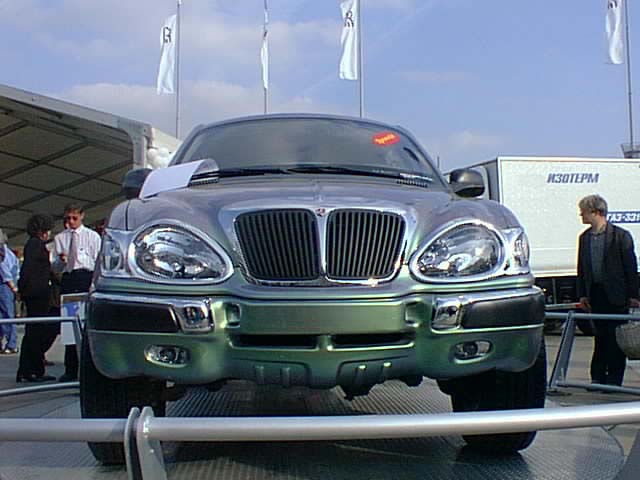

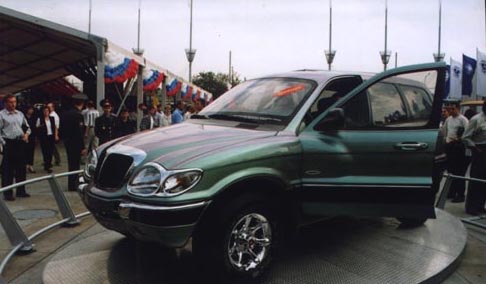

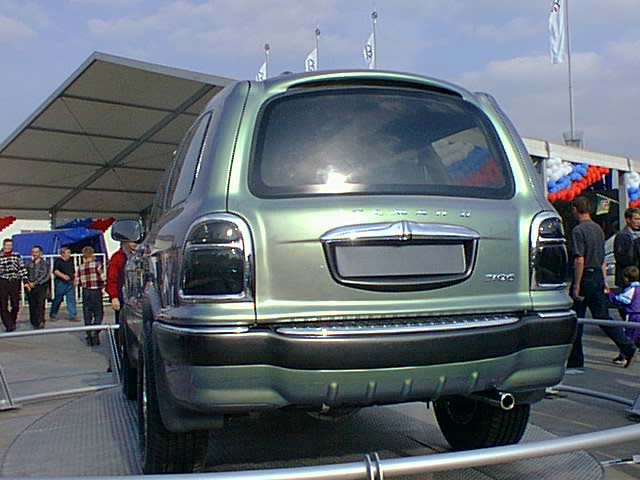

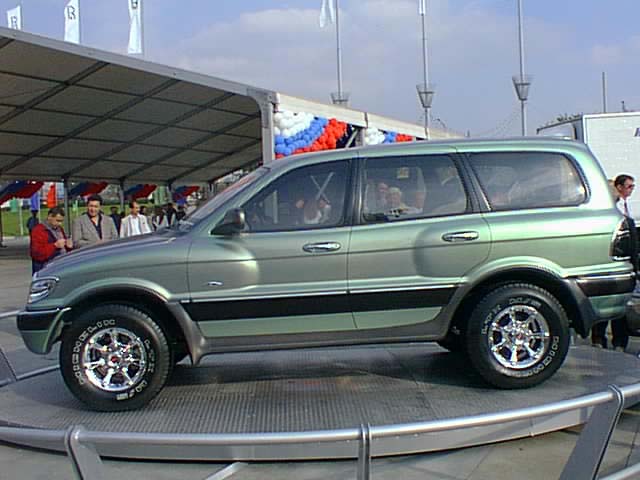

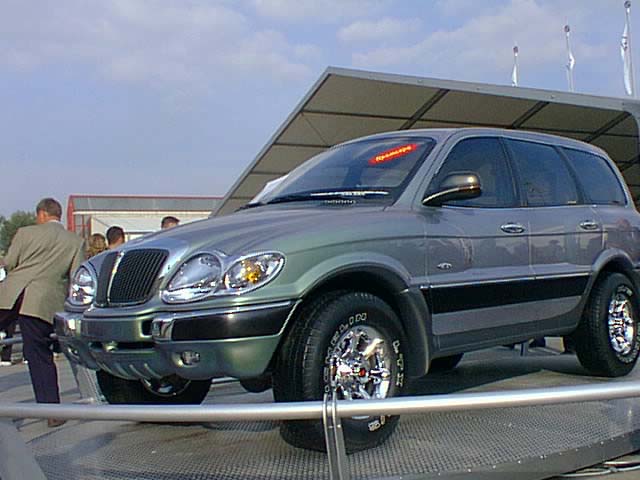

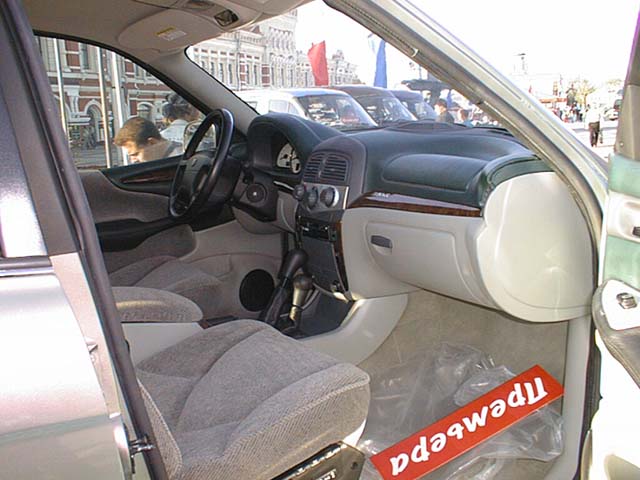

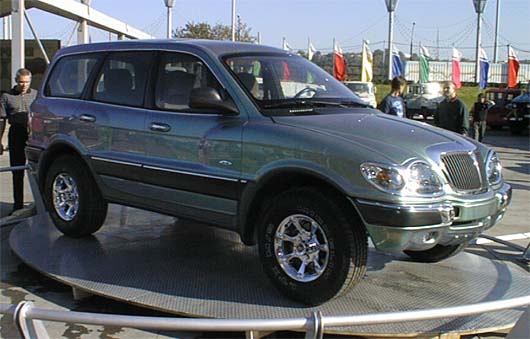

GAZ-3106 "Volga" station wagon 4 X 4, net mass 2,000 kg, full mass 2,600 kg, 7 people, length 4690 mm, width 1860 mm, height 1850 mm. Base 2820 mm, clearance is 215 mm, radius of turn 5.9 meters, max speed 150 km/h. Engine GAZ-561, 5 cylinder 2.67 L diesel with 141 horsepower. (38 KB color, side view, drawing [4]), (43 KB color, side view [11]), (32 KB color, side view [11]), (48 KB color, front view [11]), (51 KB color, front view [11]), (50 KB color, side view [11]), (48 KB color, front view [11]), (49 KB color, rear view [11]), (50 KB color, side view [11]), (57 KB color, interior view [11])

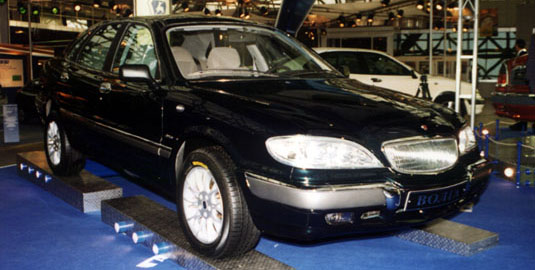

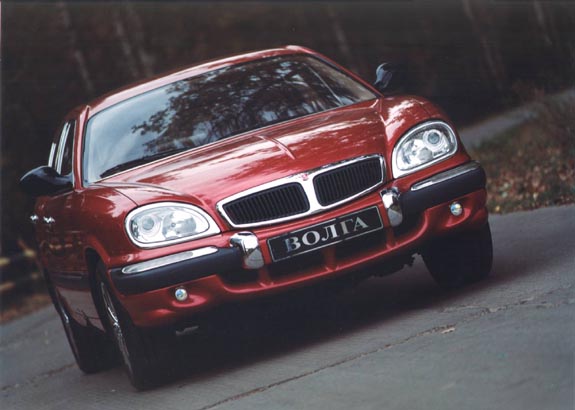

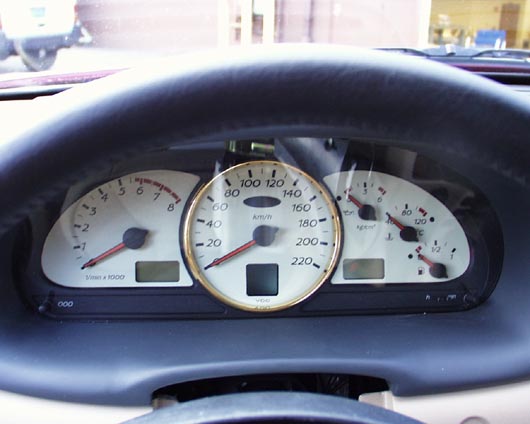

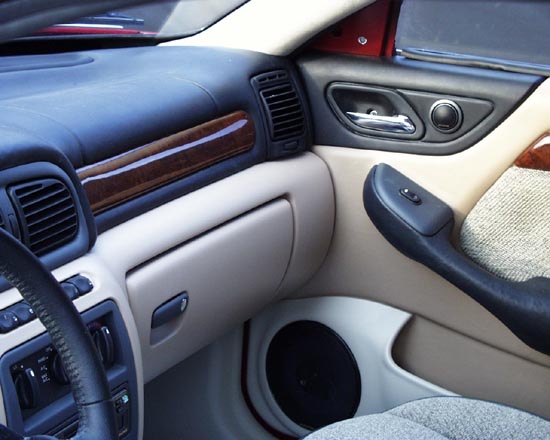

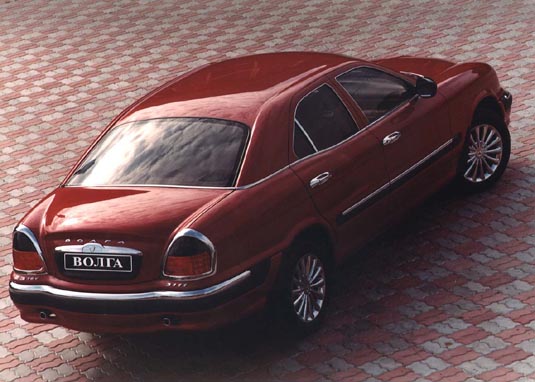

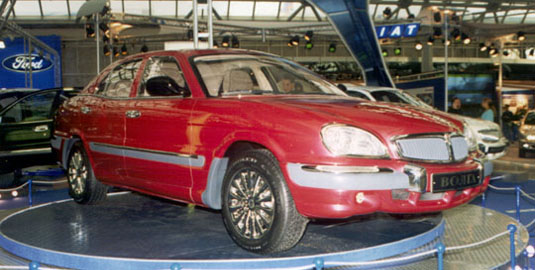

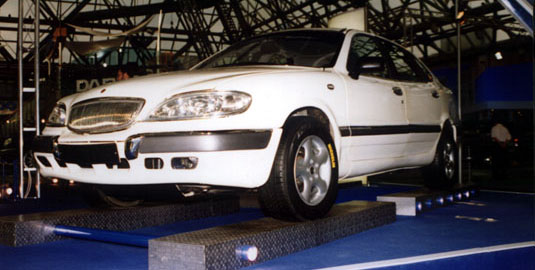

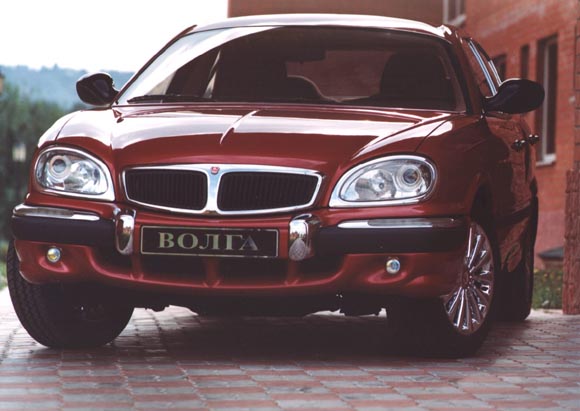

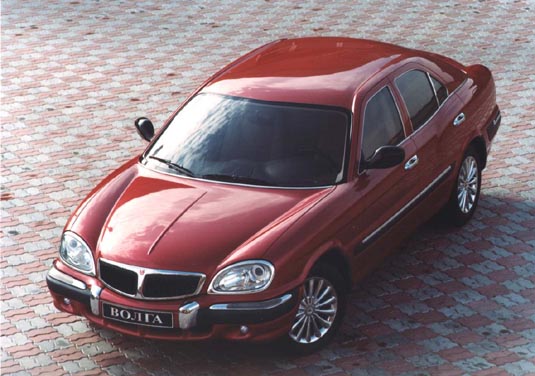

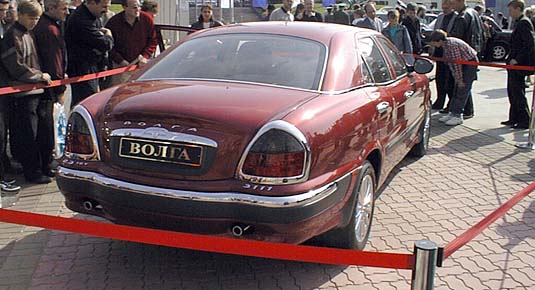

GAZ-3111 "Volga" being prepared for production line.

 (53 KB color, side view [11]), (46 KB color, front view [11]), (47 KB color, rear view [11]), (53 KB color, top view [11]), (42 KB color, front view [11]), (51 KB color, side view [11]), (38 KB color, interior view [11]), (49 KB color, interior view [11])
