GAZ-3102 "Volga"

SovAvto Website.



Model  GAZ-3102 "Volga" (*) [**]
Seating 5 (7) [5]
Curb weight, kg TOTAL 1450 (1540) [1545]
front axle -
rear axle -
Gross weight, kg TOTAL 1850 (2015) [1960]
front axle -
rear axle -
Payload [carrying capacity] weight, kg -
Permissible [semi-]trailer weight, kg -
Length, mm 4948 (4874)
Width, mm 1820
Height, mm 1422 (1438) [1652]
Wheelbase, mm 2800
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle 156
Minimal radius of turn, m b/n curbs (outer front wheel) 5.8
b/n walls (extreme exterior dimension -
Maximum speed, km/h 140 (147)
Fuel consumption, liters/100km 9.3 (10.4) @ 90 km/h; 12.9 (13.5) @ 120 km/h
Acceleration time from 0-100 km/h, seconds 20 (19)
Transmission gearbox 5 speed
gearbox ratios

-

main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size -
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear -
gear ratio -
Brakes braking distance, m -
service (foot) rear drum brakes and front disk brakes w/ hydraulic drive
parking (hand) -
Filling capacities, liters fuel tank 55 (Ai-93)
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type 4 cyl., inline, carb., 4-stroke, ZMZ-4021.10 (ZMZ-402.10)
cylinder work order -
maximum horsepower, hp 105 @ 4,500 rpm
maximum torque, Nm -
displacement, liters 2.445
compression ratio -
bore/stroke, mm -
Years of production 1986-present (1992-1997)
Overall units made ?
Wheel arrangement 4 X 2
Pictures  see below

* (parenthesis) indicate parameters of GAZ-31022 "Volga" station wagon that are different from GAZ-3102 "Volga".

** [brackets] indicate parameters of GAZ-31023 "Volga" medical station wagon that are different from GAZ-31022 "Volga" station wagon.

There is also a slightly different GAZ-3110 "Volga". It has almost exactly the same technical characteristics, so the only difference from GAZ-3102 "Volga" is its newer design.

In 1995 production of GAZ-3102 "Volga" V16 was begun. This car has a ZMZ-406.10 engine (4 cyl., inline, fuel injector, 150 h.p. [@5,200 rpm], 2.287L volume)

Model Technical parameters Comments Photos
GAZ-3101 - prototype shown in 1984 (32 KB b/w, front view [16])

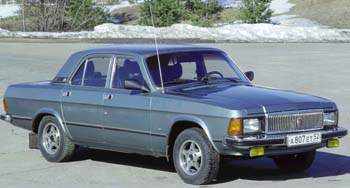

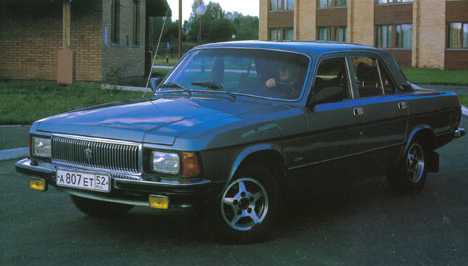

GAZ-3102 see table above basic model

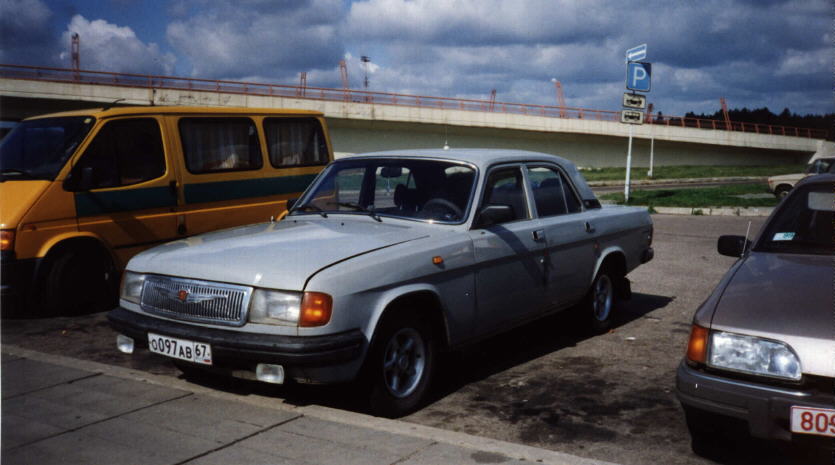

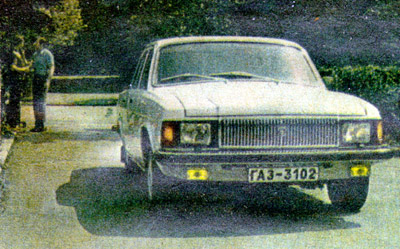

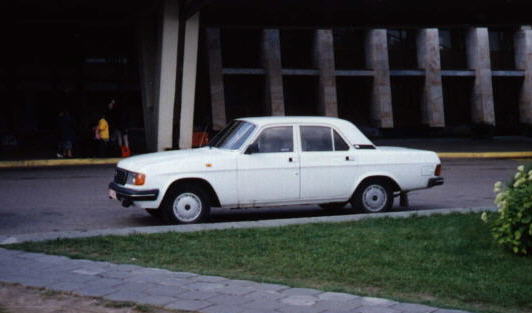

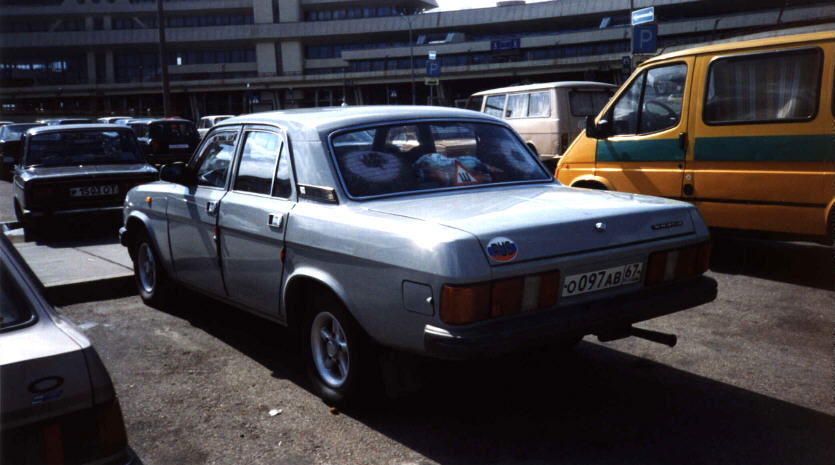

(61 KB color, front view [4]), (58 KB color, front view [17]), (24 KB color, side view [17]), (61 KB color, rear view [17]), (15 KB color, another side view of [11]), (9 KB color, side view [12]), (13 KB color, front view [11])

GAZ-31021 see table above taxi model (25 KB color, side view [41])
GAZ-31022 see table above (data in parenthesis) station wagon

(15 KB color, side view station wagon [12]), (14 KB color, another side view of station wagon [11])

GAZ-310221 full mass 2,016 kg, 2 people + 400 kg station wagon (36 KB color, station wagon [17]), (17 KB color, front view [11])
GAZ-31023 see table above [data in brackets] ambulance station wagon

(16 KB color, side view [12]), (19 KB color, side view [11])

GAZ-310231 full mass 1,880, 5 people ambulance station wagon (17 KB color, front view [11])

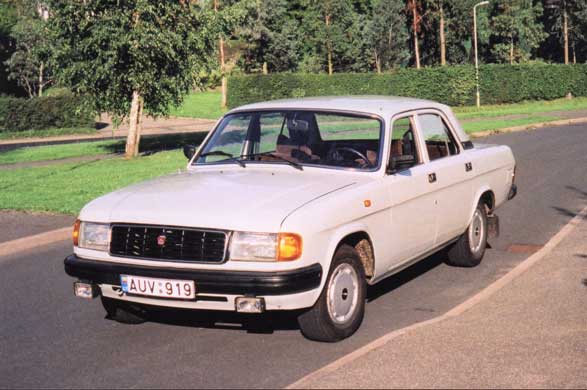

GAZ-31029 similar to GAZ-3102 modern GAZ-3102

(18 KB color, side view [1992-1997] [12]), (15 KB color, side view [11]), (22 KB color, side view [4]), (22 KB color, front view [4]), (28 KB color, top view [4]), (37 KB color, front view, in England [156])

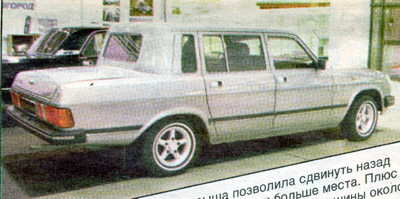

GAZ-31029 Persona similar to GAZ-3102 modified rear roof section (45 KB color, side view, very rare [13])

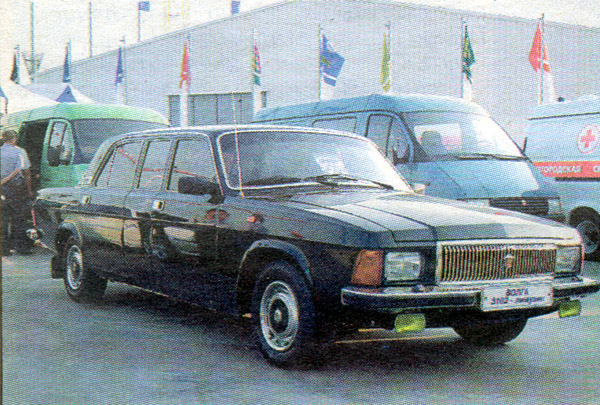

GAZ-3102 Limousine ? limousine version (45 KB color, front view at a car show [13])
