| Model | MZMA-416 | |
| Seating | 6 | |
| Curb weight, kg [lb] | TOTAL | 1,158 [2,548] |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg [lb] | TOTAL | |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg [lb] | - | |
| Permissible [semi-]trailer weight, kg [lb] | - | |
| Length, mm [in.] | 3490 [11' 5 6/16"] | |
| Width, mm [in.] | 1670 [5' 5 3/4"] | |
| Height, mm [in.] | 1835 [6' 0 1/4"] | |
| Wheelbase, mm [in.] | 2030 [6' 7 15/16"] | |
| Track width, mm [in.] | front | - |
| rear | - | |
| Minimal ground clearance, mm [in.] | - | |
| Minimal radius of turn, m [yards] | - | |
| Maximum speed, km/h [mi/h] | 105 [65] | |
| Fuel consumption, liters/100km [mi/gal] | 10.3 [23] | |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - | |
| Transmission | gearbox | 4 speeds |
| gearbox ratios | - | |
| main gear ratio | - | |
| transfer case ratio | - | |
| clutch | - | |
| Wheels | number | - |
| tire size | - | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | - |
| rear | - | |
| Steering | gear | - |
| gear ratio | - | |
| Brakes | braking distance, m [yards] | - |
| service (foot) | - | |
| parking (hand) | - | |
| Filling capacities, liters [gal] | fuel tank | |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | MZMA-407, carb., 4-tact, 4 inline cyl., OHV |
| cylinder work order | - | |
| maximum horsepower, hp [kW] | 45 [34] @ 4,500 rpm | |
| maximum torque, N·m [lb·ft] | - | |
| displacement, liters [cc] | 1.36 [1,360] | |
| compression ratio | 7.0:1 | |
| bore/stroke, mm [in.] | 76 [3.00]/ 75 [2.95] | |
| Years of production | 1960 (experimental) | |
| Wheel arrangement | 4 X 4 | |

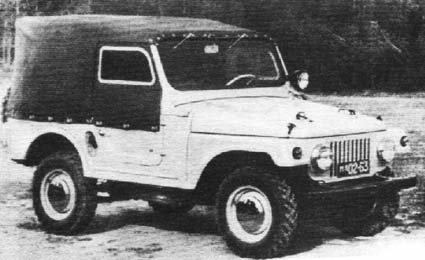

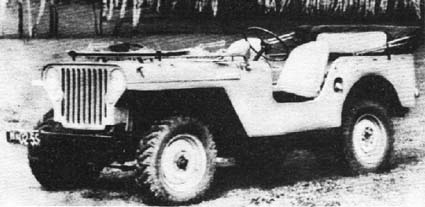

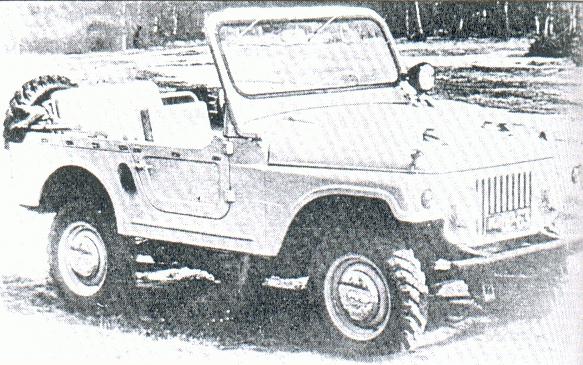

| Pictures | 58 KB (b/w, side view [MZMA-415] [28])

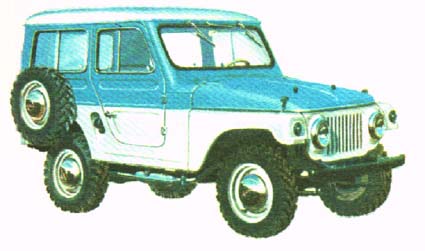

23 KB (b/w, side view [MZMA-415] [3]) 26 KB (b/w, side view [MZMA-415] [86]) 22 KB (color, drawing, side view [MZMA-416] [3]) |
|
In early 1960 2 prototypes of 4 X 4 Moskvich-415 (open jeep) and 2 prototypes of Moskvich-416 (jeep with hard top roof) were made. Moskvich-416 had 407 engine and 4 speed gear box. MZMA did not receive any funds for production of this car and the idea of this jeep died out.
