| Model | ZMA-404-Sport | |
| Seating | - | |
| Curb weight, kg [lb] | TOTAL | 902 [1,984] |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg [lb] | TOTAL | - |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg [lb] | - | |
| Permissible [semi-]trailer weight, kg [lb] | - | |
| Length, mm [in.] | 4130 [13' 6 5/8"] | |
| Width, mm [in.] | 1375 [4' 6 1/8"] | |
| Height, mm [in.] | 1015 [3' 4"] | |
| Wheelbase, mm [in.] | 2340 [7' 8 1/8"] | |
| Track width, mm [in.] | front | - |
| rear | - | |
| Minimal ground clearance, mm [in.] | - | |
| Minimal radius of turn, m [yards] | - | |
| Maximum speed, km/h [mi/h] | 147 [91] | |
| Fuel consumption, liters/100km [mi/gal] | - | |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - | |
| Transmission | gearbox | 2 gears |
| gearbox ratios | - | |
| main gear ratio | - | |
| transfer case ratio | - | |
| clutch | - | |
| Wheels | number | - |
| tire size | - | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | - |
| rear | - | |
| Steering | gear | - |
| gear ratio | - | |
| Brakes | braking distance, m [yards] | - |
| service (foot) | - | |
| parking (hand) | - | |
| Filling capacities, liters [gal] | fuel tank | - |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | ZMA-404, V4 cyl. |
| cylinder work order | - | |
| maximum horsepower, hp [kW] | 58 [43] @ 4,750 rpm | |
| maximum torque, N·m [lb·ft] | - | |
| displacement, liters [cc] | 1.07 [1,074] | |
| compression ratio | 9.2:1 | |
| bore/stroke, mm [in.] | - | |
| Years of production | 1954 | |
| Wheel arrangement | 4 X 2 | |

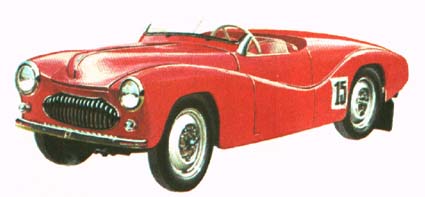

| Pictures | 17 KB (color, drawing,

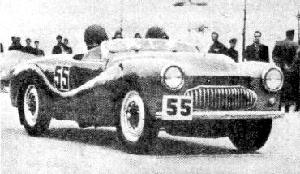

side view [3]) 14 KB (b/w, front view [16]) |
|
Experimental engine 404 was used for Moskvich-404-Sport in 1954. Only one such car was made and it was based on mechanisms of Moskvich-400 and Moskvich-403E. In 1959 a forcified 407 engine was placed on this car. Also, this won 3 championships of the USSR in 1957-1959.
