| Model | AZLK-2141 (AZLK-2335)* | AZLK-21412 (AZLK-23352)** | |
| Seating | 5 (2) | ||
| Curb weight, kg [lb] | TOTAL | 1,070 [2,354] (990 [2,178]) | 1,080 [2,376] (1,000 [2,200]) |
| front axle | - | - | |
| rear axle | - | - | |
| Gross weight, kg [lb] | TOTAL | 1,470 [3,234] (1,630 [3,586]) | 1,480 [3,256] (1,640 [3,608]) |
| front axle | - | - | |
| rear axle | - | - | |
| Payload [carrying capacity] weight, kg [lb] | - | - | |
| Permissible [semi-]trailer weight, kg [lb] | - | - | |
| Length, mm [in.] | 4350 [14' 3 1/4"] (4590 [15' 11/16"]) | ||
| Width, mm [in.] | 1690 [5' 6 1/2"] (1740 [5' 8 1/2"]) | ||
| Height, mm [in.] | 1400 [4' 7 2/16"] (1455 [4' 9 1/4"]) | ||
| Wheelbase, mm [in.] | 2580 [8' 5 9/16"] (2700 [8' 10 5/16"]) | ||
| Track width, mm [in.] | front | - | |
| rear | - | ||
| Minimal ground clearance, mm [in.] | 163 [6 6/16"] (160 [6 5/16"]) | ||
| Minimal radius of turn, m [yards] | - | ||
| Maximum speed, km/h [mi/h] | 153 [95] (143 [89]) | 145 [90] (140 [87]) | |
| Fuel consumption, liters/100km [mi/gal] | 9.4 [25] (city cycle)/ 6.1 [38] (@ 90 km/h [56 mph]) (10.1 [23] (city cycle)/ 7 [34] (@ 90 km/h [56 mph]) | 10 [23] (city cycle)/ 6.3 [37] (@ 90 km/h [56 mph]) (same city cycle/ 7.1 [33] @ 90 km/h [56 mph]) | |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | 16.7 (17) | 20 (19) | |
| Transmission | gearbox | 5 speeds | |
| gearbox ratios | - | ||
| main gear ratio | - | ||
| transfer case ratio | - | ||
| clutch | - | ||
| Wheels | number | - | |
| tire size | - | ||
| tire pressure, kg/cm2 | - | ||
| Suspension | front | - | |
| rear | - | ||
| Steering | gear | - | |
| gear ratio | - | ||
| Brakes | braking distance, m [yards] | - | |
| service (foot) | - | ||
| parking (hand) | - | ||
| Filling capacities, liters [gal] | fuel tank | 55 [15] (Ai-93) | |
| engine cooling system | - | ||
| engine lubrication system | - | ||
| gearbox housing | - | ||
| axle housing | - | ||
| steering system cylinder | - | ||
| shock absorbers | - | ||
| air filter | - | ||
| Carburetor | - | ||
| Electric equipment | - | ||
| Accumulator battery | - | ||
| Generator [alternator] | - | ||
| Relay-regulator | - | ||
| Starter motor | - | ||
| Timer-distributor | - | ||
| Spark plugs | - | ||
| Engine | engine type | VAZ-2106-70, carb., 4 inline cyl., OHV | UZAM-331.10, carb., 4 inline cyl., OHV |
| cylinder work order | - | - | |
| maximum horsepower, hp [kW] | 77 [57] @ 5,400 rpm | 72 [54] @ 5,500 rpm | |
| maximum torque, N·m [lb·ft] | 12.1 [78] @ 3,000 rpm | 10.6 [69] @ 3,200 rpm | |
| displacement, liters [cc] | 1.57 [1,570] | 1.48 [1,480] | |
| compression ratio | 8.5:1 | 9.5:1 | |
| bore/stroke, mm [in.] | 79 [3.11]/ 80 [3.15] | 82 [3.23]/ 70 [2.78] | |
| Years of production | 1986-present (1992-present) | ||
| Wheel arrangement | 4 X 2 | ||

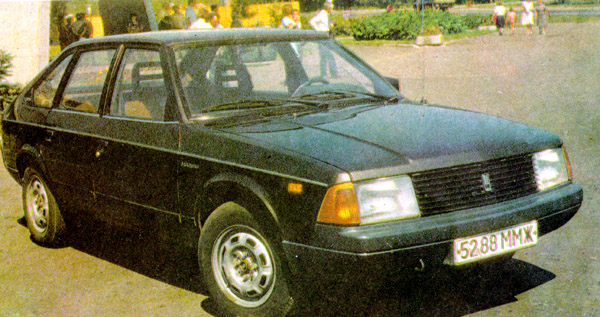

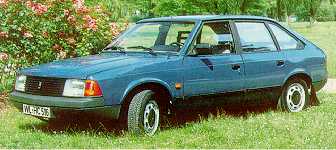

| Pictures | 13 KB (color, side view [AZLK-2141]

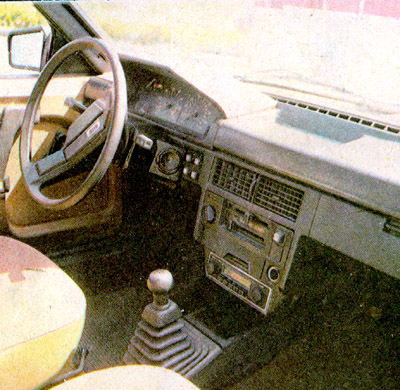

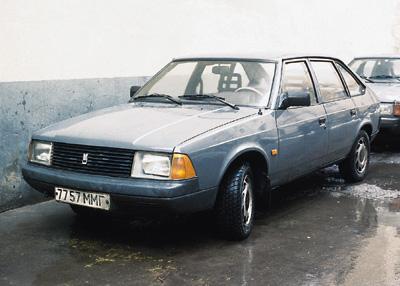

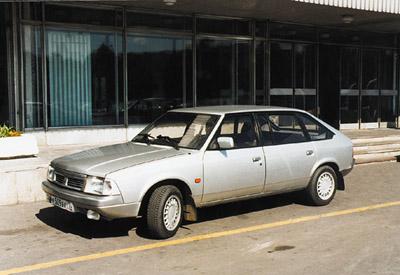

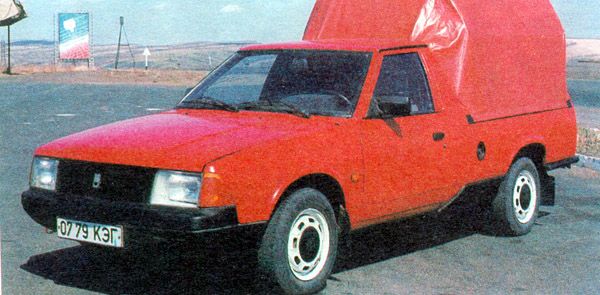

[10]) 19 KB (color, front view [AZLK-2141] [4]) 21 KB (color, side view [AZLK-2141] [4]) 104 KB (color, side view [AZLK-2141] [4]) 89 KB (color, interior view [AZLK-2141] [4]) 86 KB (color, front view [AZLK-2335] [3]) |
same as AZLK-2141 and AZLK-2335 | |
* parameters of AZLK-2335 (pickup) that are different from those of AZLK-2141 (sedan) are given in (parenthesis).
** parameters of AZLK-23352 (pickup) that are different from those of AZLK-21412 (sedan) are given in (parenthesis).
In 1986, AZLK started its newest production line of AZLK-2141 "Moskvich". It is equipped with VAZ-2106-70 engine. Along with that model, AZLK-21412 with UZAM-331.10 was also started in 1986. More recently, in 1994, AZLK-21412-2 with UZAM-3317 (85 h.p. @ 5,400 rpm, 13 N*m @ 3,200 rpm, 1,702 cc, bore/stroke 85/75 mm, 160 km/h max, 14.9 sec 0-100 km/h) came into existence. Size dimensions of AZLK-21412-2 are nearly identical to those of basic AZLK-2141. In 1992, pickup modification AZLK-2335 was started.

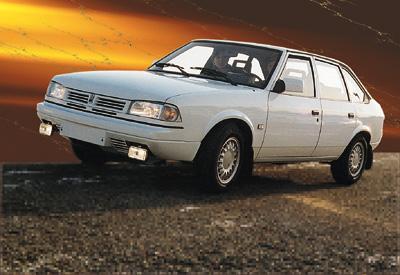

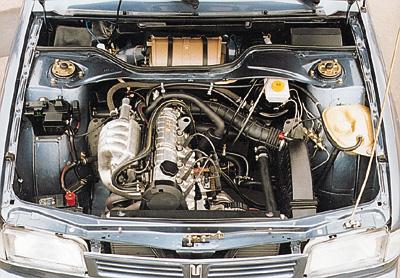

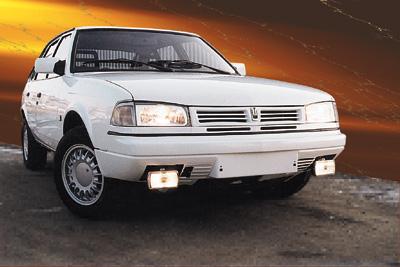

In 1997, AZLK-Sviatogor station wagon joined AZLK-2141 on the production line. Sviatogor is available either with VAZ-2106-70 engine (see above for characteristics) or with Renault F3R engine (114 h.p @ 5,400 rpm, 16.8 N*m @ 4,250 rpm, fuel injector, 1,998 cc, bore/stroke 82.7/93 mm, 175 km/h max, 4I OHV, Ai-95 fuel). Size dimensions of Sviatogor are nearly identical to those of basic AZLK-2141. (19 KB color, front view [4], 22 KB color, side view [4], 37 KB color, engine view [4])

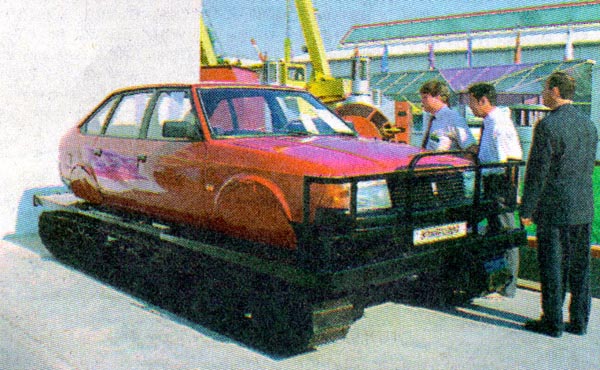

Another model of this family is Sibir. It is AZLK-2141 on tracks intended for harsh mud and snow conditions. (81 KB color, side view [13])
